High stability, high performance - TXGA DDR5 SODIMM slot, a compact memory module designed specifically for space-constrained devices

The TXGA DDR5 SODIMM Socket adopts a 262 pin design with a contact spacing of 0.5mm. It has a compact appearance, saving installation space and is suitable for miniaturized devices. The transmission rate can reach up to 6400 Mbps, doubling the bandwidth of DDR4. Paired with DDR5 memory modules, it achieves a "dual channel" transmission effect, which can bring faster and more stable data transmission compared to traditional DDR4.

Product Features

Exquisite layout
The DDR5 SODIMM Socket adopts a 262 pin design with a contact spacing of 0.5mm, reducing the volume by 50% compared to standard DIMMs, making it more suitable for miniaturized devices.

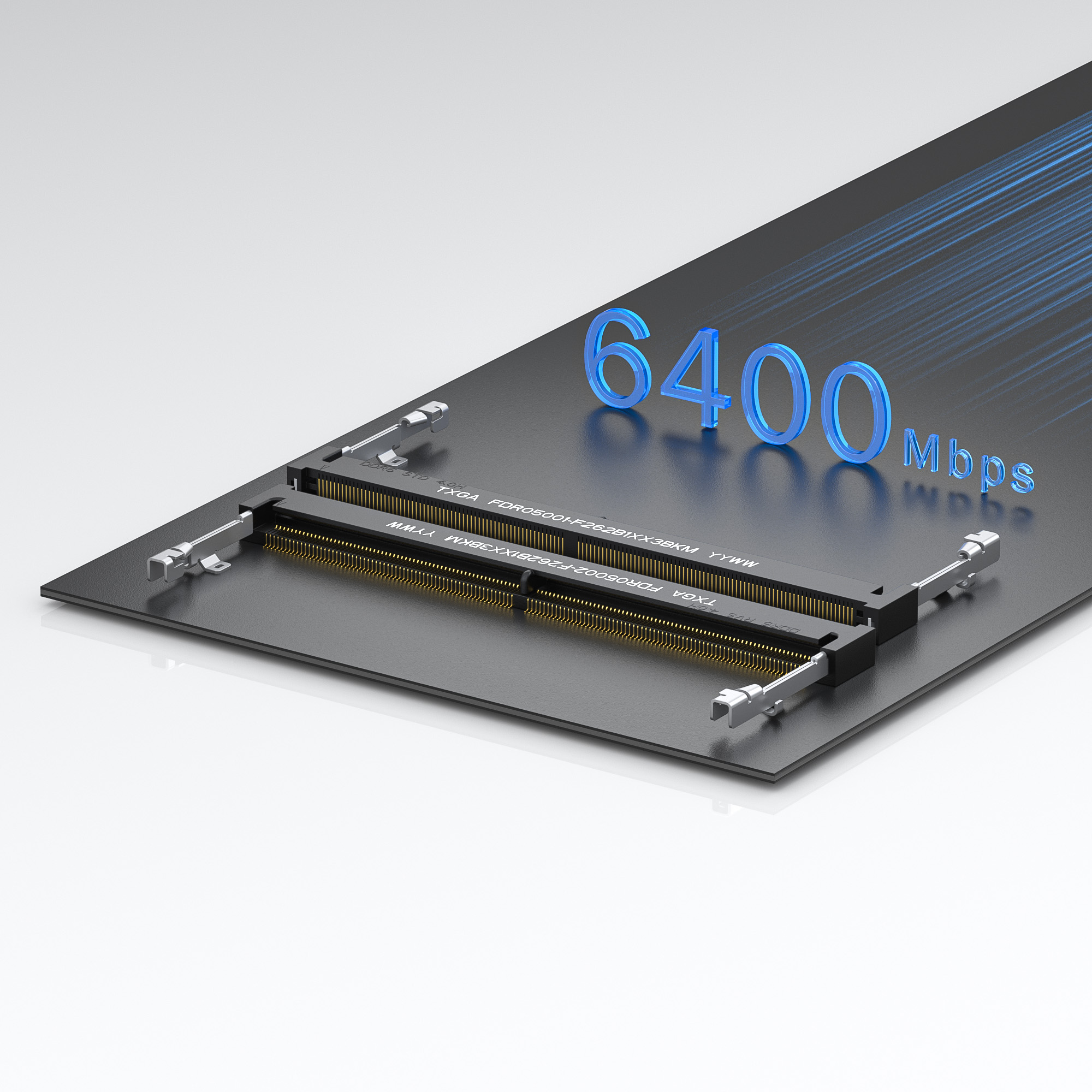

Rapid transmission
The data transfer rate of DDR5 SODIMM Socket has increased from 3200 MT/s in DDR4 to 4800-6400 MT/s, doubling the bandwidth compared to DDR4 and significantly improving data transfer speed.

Dual channel transmission
Paired with DDR5 memory modules, the bit width is cut from 64 bits to 32 bits * 2, achieving a "dual channel" effect inside a single memory module, which can bring wider bandwidth than traditional single channel DDR4.

brown-out
The working voltage of DDR4 has been reduced from 1.2V to 1.1V, resulting in a 40% decrease in power consumption and an extension of the device's battery life.

Product parameters

Number of digits: 262
Center distance: 0.5mm
Current (maximum): 0.5A
Voltage (maximum): 29V
Contact resistance: 40 m Ω Max
Insulation resistance: 500 M Ω Min
Voltage endurance: 250V AC r.m.s
Working temperature: -40 ℃~+85 ℃

Application industry

Consumer Electronics
ipc
The server
storage
Network Center
