TXGA LVDS connector frees up more available space for portable devices

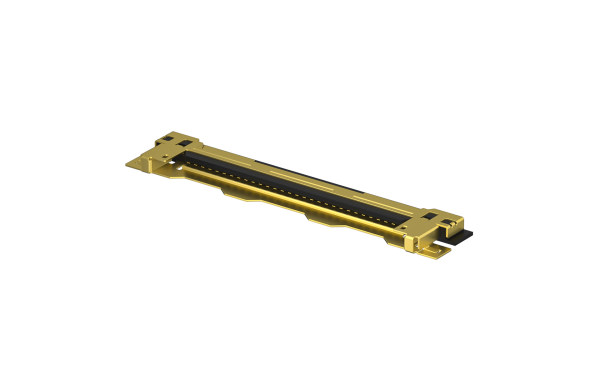

LVDS connector, also known as low-voltage differential signal connector. At extremely low voltage amplitudes, even in a high-speed jitter state, LVDS connectors can efficiently transmit signals at a rate of several hundred megabits. The LVDS connector launched by TXGA brings a new interconnect solution for portable devices, effectively freeing up more available space.

Product Features

Small Design: Adopting an ultra small plug-in structure, the product height is only 1mm, greatly saving the internal space of the equipment and providing strong support for the miniaturization design of portable devices.

High quality material: The copper alloy shell is selected, and the contacts are gold-plated. This design not only has oxidation resistance, but also excellent corrosion resistance, effectively extending the service life of the connector.

Strong compatibility: It is compatible with various high-frequency signal transmissions such as LVDS, HDMI, V-by-One HS/US, etc., meeting the diverse signal transmission needs of different devices.

Wide adaptability to various environments: Supports stable operation in a wide temperature range of -40 º C to 85 º C, ensuring reliable signal transmission regardless of extreme cold or heat.

performance parameters

Maximum current per contact: 0.50A
Voltage (maximum): 50V
Contact resistance: 20 m Ω Max
Insulation resistance: 500 M Ω Min
Voltage endurance: 250V AC r.m.s

Application Industry

Consumer TV Panel
laptop
tablet
Car infotainment system
